Load Break Switch VCP Series
GENERAL CHARACTERISTICS - rated insulation voltage 1000V AC and 1500V DC, 3 poles available...
GENERAL CHARACTERISTICS
- rated insulation voltage 1000V AC and 1500V DC
- 3 poles available
- high breaking capacity (AC-22, AC-23, IEC 60947-3)
- high electrical and mechanical endurance
- double break contacts
- self cleaning contacts
- contact position positively indicated by the handle
- visibility of fixed and moving contacts by means of windows
- independent manual operation
- neutral contact makes earlier and opens later than the phase contacts
- solid neutral version available
- neutral at full current until 1250 A, standard, 1600 A รท 3150 A on request
- suitable protection to prevent accidental touching of liveparts
- casing in self-extinguishing (V0-UL94), low hygroscopic and high mechanical resistance isolating material
- resistant to damp heat (IEC 6068-2)
- wide range of accessories
- rotary front operation by means of: external double insulated handle with door-interlock in ON position,
- IP65 degree of protection. Padlockable with three padlocks in OFF position
- direct handle (padlockable in OFF position on request).
RANGE COMPOSITION
LOAD BREAKER SWITCH 3P

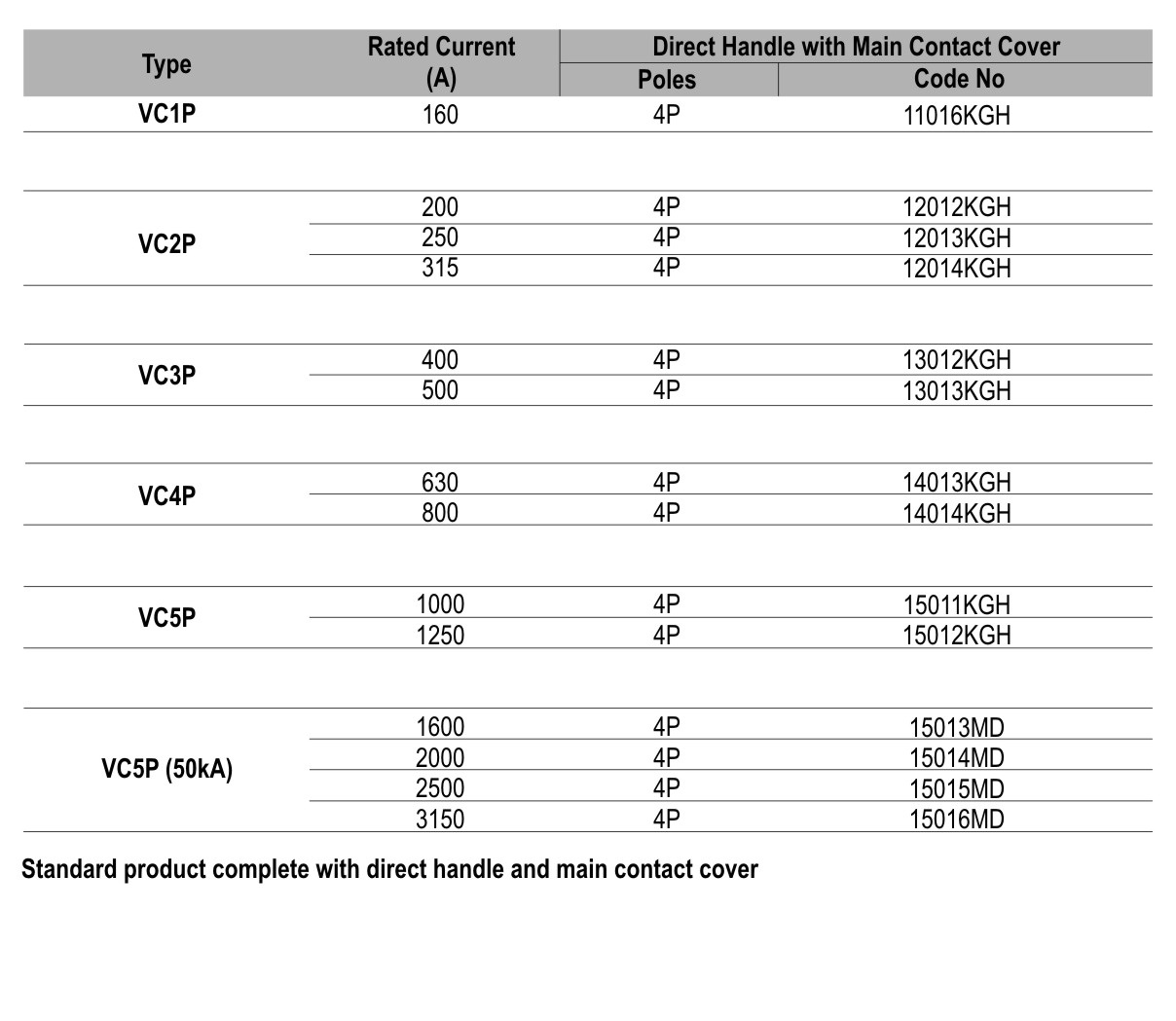

LOAD BREAKER SWITCH 4P
