CT 404 - Ring
A completely enclosed of current transformer most appropriate for use in low voltage switchboard plats and key components in measurement system.
Specification
|
Highest voltage for equipment Um (r.m.s.) |
0.72 kV
|
|
Rated power-frequency withstand voltage (r.m.s.) |
3 kV
|
|
Rated short-time thermal current (Ith) |
60 Ipn
|
|
Rated dynamic current (Idyn) |
2.5 Ith
|
|
FS |
5
|
|
Class of Insulation |
E
|
|
Rated frequency |
50 … 60 Hz
|
|
Working temperature |
0
o … 50o C |
|
Storage temperature |
-10° C… +70° C
|
|
Relative humidity |
95%(non condensing)
|
|
Case / Color |
PC V0 / Black
|
|
Base plate |
Movable (fix & unfix by 2 pcs of screws)
|
|
Weight |
1,500gr
|
Dimension (mm)

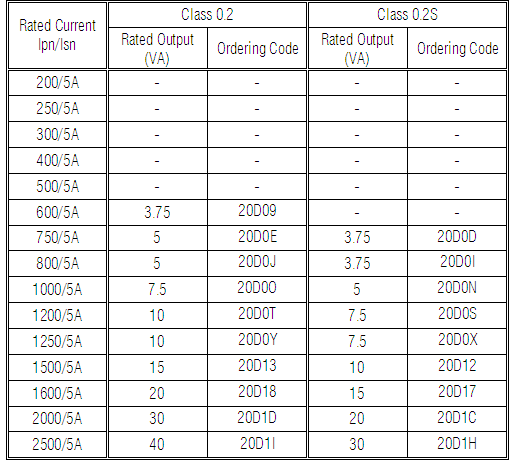

Ordering Code
